Motion Sensor 360 Degree Recessed PIR Ceiling Occupancy Detector Light Switch

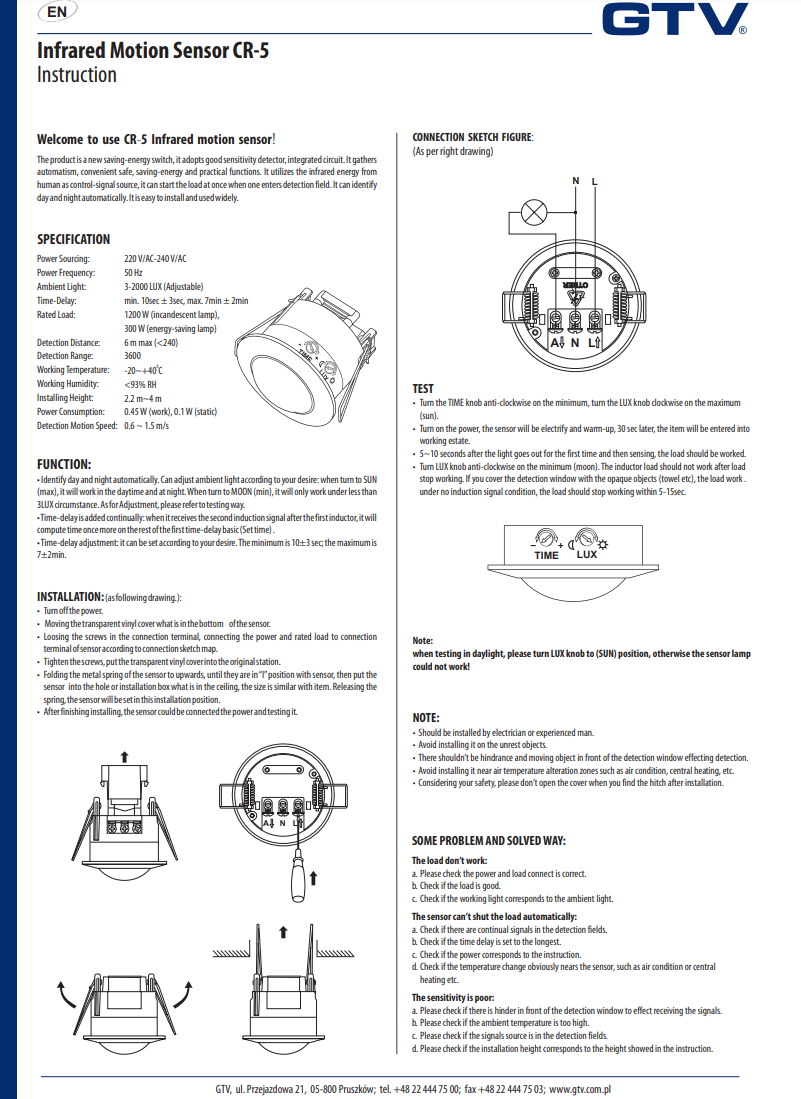

Motion Sensor GTV CR-5

The GTV CR-5 motion sensor detects infrared radiation and is designed for optimal performance.

Key Features:

• Detection Angle: 360 degrees horizontally
• Motion Detection Range: Up to 9 meters
• Adjustments: Smooth adjustment of operating time and twilight sensitivity
• Maximum Load: Controls light bulbs with a total power of up to 1200W

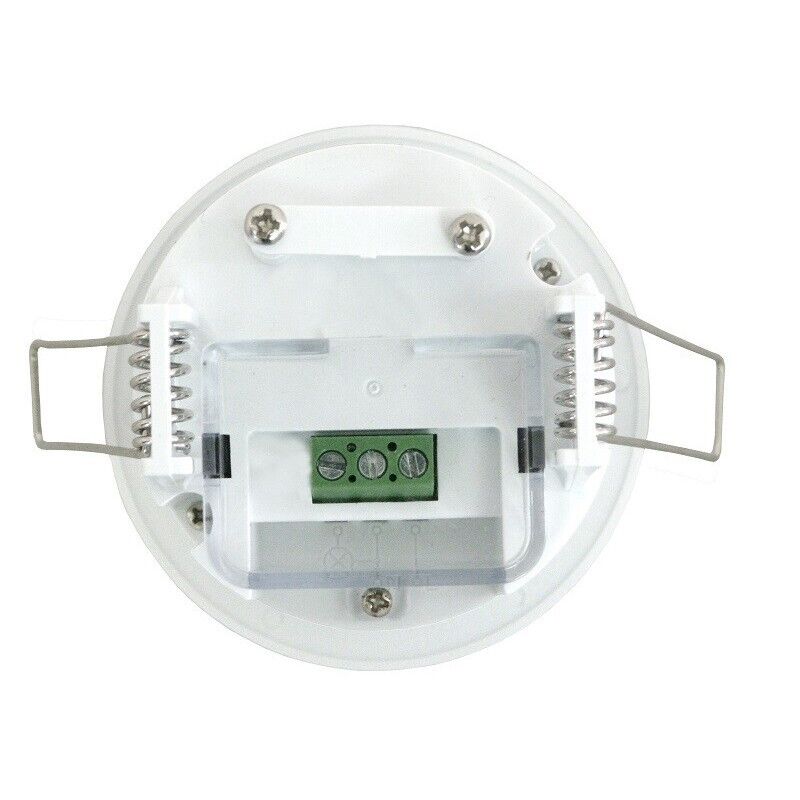

• Installation: Fits into pre-prepared slots of diameter 60 mm (fi60)

Functions:

1. Day and Night Recognition:

   • Users can set the ambient light intensity.
   • The sensor will work both day and night at the maximum setting (“Sun”).
   • At the minimum setting (“Moon”), the sensor will only work when the ambient light intensity is below 3 lux.

2. Continuous Delay Time Accumulation:

   • When the sensor detects a second activation signal after the first, it recalculates the delay time to add to the elapsed delay time since the first activation.

3. Delay Time Adjustment:

   • According to the user’s preference, the minimum time is 10 seconds, and the maximum time is 7 minutes.

4. Switch Settings:

   • “TIME” for adjusting the delay time.
   • “LUX” for adjusting the light sensitivity.
