Motion Sensor Presence Detector Infra-Red High Sensitivity LUX Recessed 360 PIR

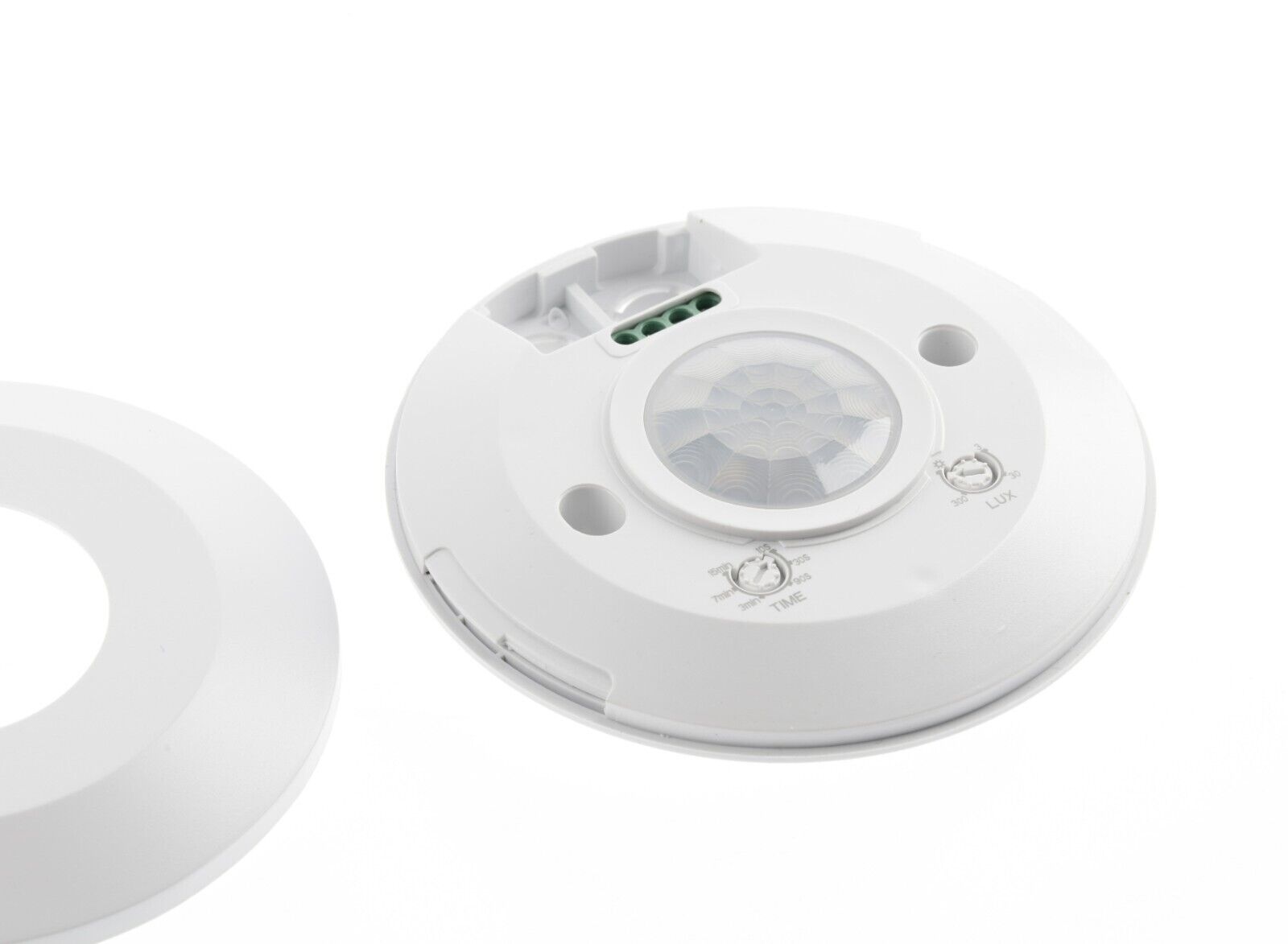

Motion Sensor GTV CR-3 MINI

The GTV CR-3 MINI motion sensor is an advanced device that detects infrared radiation within a 360° range. The sensor activates connected devices upon detecting human heat in the infrared band within the detection zone.

Key Features:

• Detection Angle: Up to 360 degrees

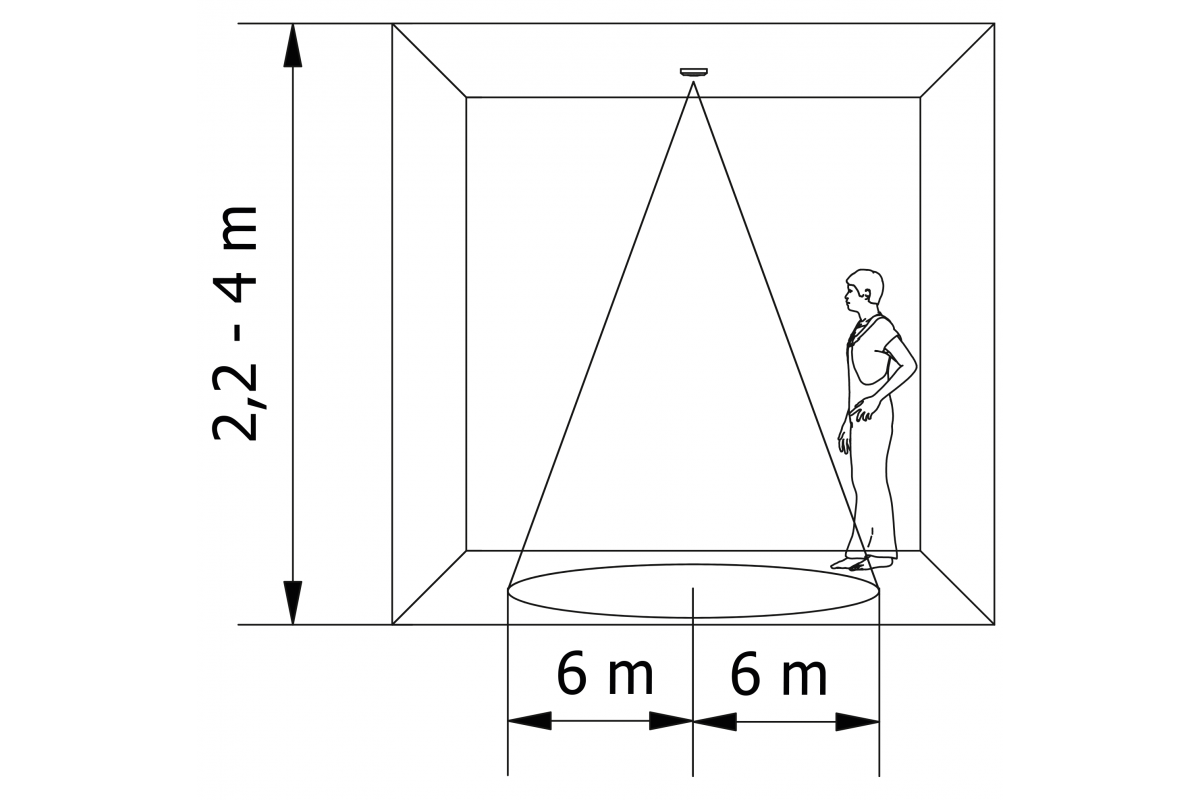

• Motion Detection Range: Up to 9 meters, dependent on installation height
• Adjustments: Smooth adjustment of operating time and twilight sensitivity
• Maximum Load: 1000 W (does not work with fluorescent lamps)
• Power Supply Voltage: 230 V
• Ambient Light Intensity: 3-2000 lux (adjustable)
• Power Consumption: 0.45 W during operation, 0.1 W in standby mode
• Activation Speed: 0.6-1.5 m/s
• Operating Time Adjustment: From 7 seconds to 3 minutes
• Operating Temperature: -20°C to +40°C
• Weight: 170 g

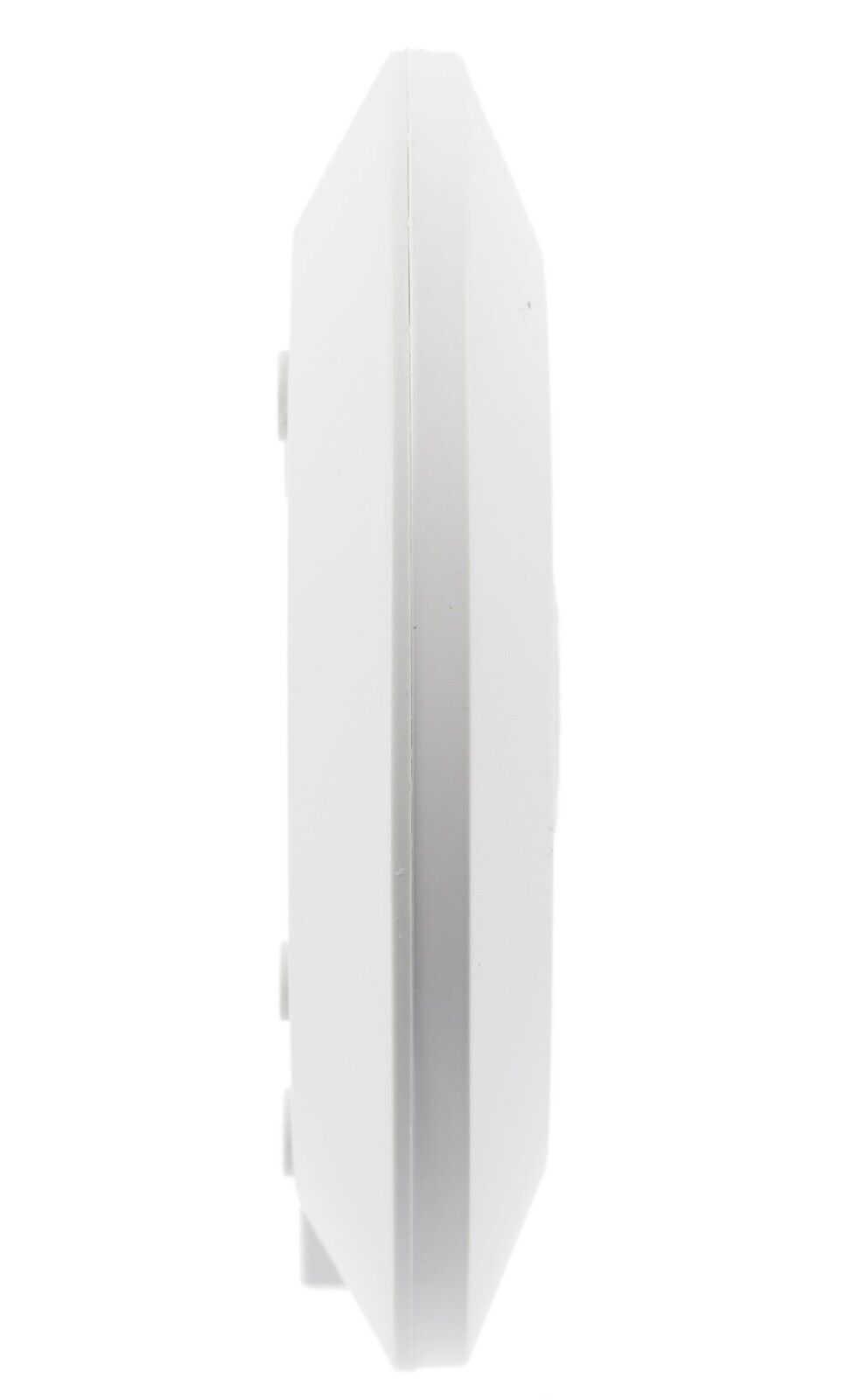

• Dimensions: Height 5.6 cm, diameter 11.5 cm
• Certifications: RoHS, CE

Functions:

1. Day and Night Recognition:

   • Users can set the ambient light intensity.
   • The sensor will work both day and night at the maximum setting (“Sun”).
   • At the minimum setting (“Moon”), the sensor will only work when the ambient light intensity is below 3 lux.

2. Continuous Delay Time Accumulation:

   • When the sensor detects a second activation signal after the first, it recalculates the delay time to add to the elapsed delay time since the first activation.

3. Delay Time Adjustment:

   • According to the user’s preference, the minimum time is 10 seconds, and the maximum time is 7 minutes.

4. Switch Settings:

   • “TIME” for adjusting the delay time.
   • “LUX” for adjusting the light sensitivity.
